Simple 1010 Pattern

Make Your First GAN With PyTorch, 2020

In [0]:

# import libraries

import torch
import torch.nn as nn

import pandas
import matplotlib.pyplot as plt
import random
import numpy

Data Functions

In [0]:

# function to generate real data

def generate_real():
    real_data = torch.FloatTensor(
        [random.uniform(0.8, 1.0),
         random.uniform(0.0, 0.2),
         random.uniform(0.8, 1.0),
         random.uniform(0.0, 0.2)])
    return real_data

In [0]:

# function to generate uniform random data

def generate_random(size):
    random_data = torch.rand(size)
    return random_data

Discriminator Network

In [0]:

# discriminator class

class Discriminator(nn.Module):

    def __init__(self):
        # initialise parent pytorch class
        super().__init__()

        # define neural network layers
        self.model = nn.Sequential(
            nn.Linear(4, 3),
            nn.Sigmoid(),
            nn.Linear(3, 1),
            nn.Sigmoid()
        )

        # create loss function
        self.loss_function = nn.MSELoss()

        # create optimiser, simple stochastic gradient descent
        self.optimiser = torch.optim.SGD(self.parameters(), lr=0.01)

        # counter and accumulator for progress
        self.counter = 0;
        self.progress = []

        pass


    def forward(self, inputs):
        # simply run model
        return self.model(inputs)


    def train(self, inputs, targets):
        # calculate the output of the network
        outputs = self.forward(inputs)

        # calculate loss
        loss = self.loss_function(outputs, targets)

        # increase counter and accumulate error every 10
        self.counter += 1;
        if (self.counter % 10 == 0):
            self.progress.append(loss.item())
            pass
        if (self.counter % 10000 == 0):
            print("counter = ", self.counter)
            pass

        # zero gradients, perform a backward pass, update weights
        self.optimiser.zero_grad()
        loss.backward()
        self.optimiser.step()

        pass


    def plot_progress(self):
        df = pandas.DataFrame(self.progress, columns=['loss'])
        df.plot(ylim=(0, 1.0), figsize=(16,8), alpha=0.1, marker='.', grid=True, yticks=(0, 0.25, 0.5))
        pass

    pass

Test Discriminator

In [0]:

# test discriminator can separate real data from random noise

D = Discriminator()

for i in range(10000):
    # real data
    D.train(generate_real(), torch.FloatTensor([1.0]))
    # fake data
    D.train(generate_random(4), torch.FloatTensor([0.0]))
    pass

counter =  10000
counter =  20000

In [0]:

# plot discriminator loss

D.plot_progress()

In [0]:

# manually run discriminator to check it can tell real data from fake

print( D.forward( generate_real() ).item() )
print( D.forward( generate_random(4) ).item() )

0.8236010670661926
0.22374509274959564

Generator Network

In [0]:

# generator class

class Generator(nn.Module):

    def __init__(self):
        # initialise parent pytorch class
        super().__init__()

        # define neural network layers
        self.model = nn.Sequential(
            nn.Linear(1, 3),
            nn.Sigmoid(),
            nn.Linear(3, 4),
            nn.Sigmoid()
        )

        # create optimiser, simple stochastic gradient descent
        self.optimiser = torch.optim.SGD(self.parameters(), lr=0.01)

        # counter and accumulator for progress
        self.counter = 0;
        self.progress = []

        pass


    def forward(self, inputs):
        # simply run model
        return self.model(inputs)


    def train(self, D, inputs, targets):
        # calculate the output of the network
        g_output = self.forward(inputs)

        # pass onto Discriminator
        d_output = D.forward(g_output)

        # calculate error
        loss = D.loss_function(d_output, targets)

        # increase counter and accumulate error every 10
        self.counter += 1;
        if (self.counter % 10 == 0):
            self.progress.append(loss.item())
            pass

        # zero gradients, perform a backward pass, update weights
        self.optimiser.zero_grad()
        loss.backward()
        self.optimiser.step()

        pass


    def plot_progress(self):
        df = pandas.DataFrame(self.progress, columns=['loss'])
        df.plot(ylim=(0, 1.0), figsize=(16,8), alpha=0.1, marker='.', grid=True, yticks=(0, 0.25, 0.5))
        pass

    pass

Test Generator Output

In [0]:

# check the generator output is of the right type and shape

G = Generator()

G.forward(torch.FloatTensor([0.5]))

Out[0]:

tensor([0.4369, 0.5104, 0.3246, 0.5549], grad_fn=<SigmoidBackward>)

Train GAN

In [0]:

%%time

# create Discriminator and Generator

D = Discriminator()
G = Generator()

image_list = []

# train Discriminator and Generator

for i in range(10000):

    # train discriminator on true
    D.train(generate_real(), torch.FloatTensor([1.0]))

    # train discriminator on false
    # use detach() so gradients in G are not calculated
    D.train(G.forward(torch.FloatTensor([0.5])).detach(), torch.FloatTensor([0.0]))

    # train generator
    G.train(D, torch.FloatTensor([0.5]), torch.FloatTensor([1.0]))

    # add image to list every 1000
    if (i % 1000 == 0):
      image_list.append( G.forward(torch.FloatTensor([0.5])).detach().numpy() )

    pass

counter =  10000
counter =  20000
CPU times: user 15 s, sys: 1.29 s, total: 16.3 s
Wall time: 16.3 s

In [0]:

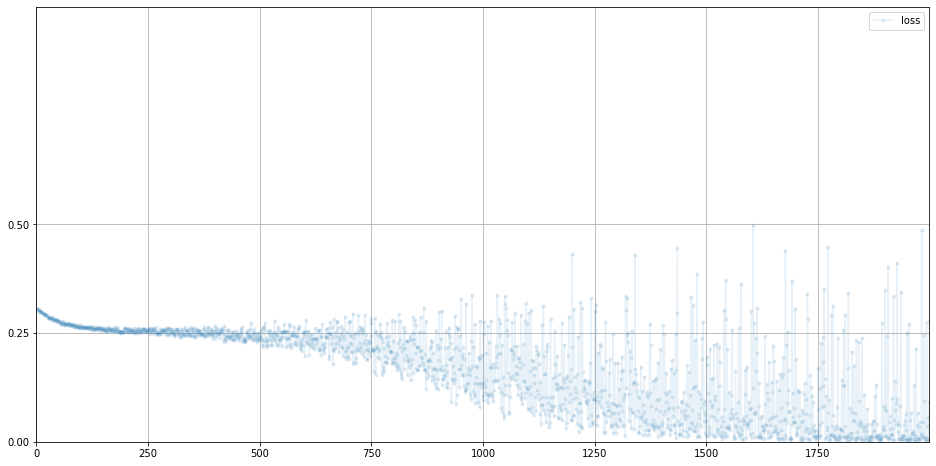

# plot discriminator error

D.plot_progress()

In [0]:

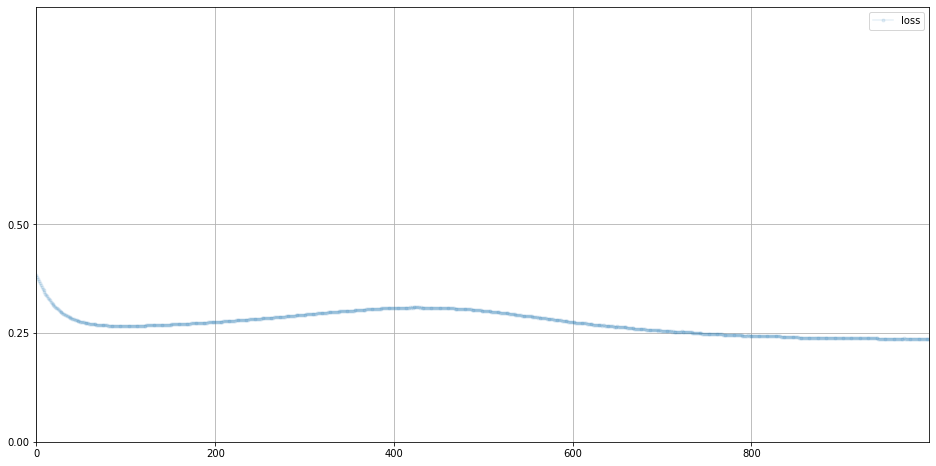

# plot generator error

G.plot_progress()

Manually Run Generator

In [0]:

# manually run generator to see it's outputs

G.forward(torch.FloatTensor([0.5]))

Out[0]:

tensor([0.9387, 0.0527, 0.9389, 0.0474], grad_fn=<SigmoidBackward>)

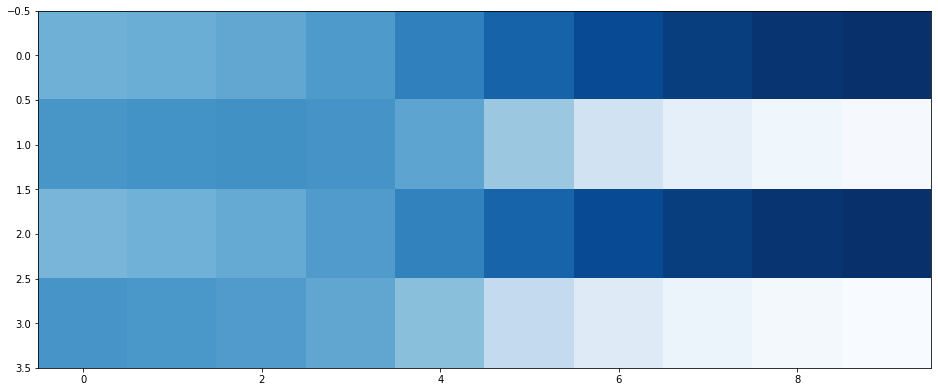

Visualise Pattern During Training

In [0]:

# plot images collected during training

plt.figure(figsize = (16,8))

plt.imshow(numpy.array(image_list).T, interpolation='none', cmap='Blues')

Out[0]:

<matplotlib.image.AxesImage at 0x7f6f317b26d8>
